Frequently Asked Questions

Product Information: Custom Carbon Fiber Large Tubes

What sizes of custom carbon fiber tubes can Element 6 Composites manufacture?

Element 6 Composites can fabricate custom carbon fiber tubes ranging from small diameters (6 and 8 inches) up to large diameters of 48 inches. The size and construction are tailored to the specific requirements of your application. Note: Tubes larger than 48 inches in diameter are not supported by current manufacturing processes.
Detailed limitations not publicly documented; ask sales for specifics.

What materials and construction methods are available for custom carbon fiber tubes?

Custom tubes can be constructed using carbon fiber, fiberglass, and aramid fibers. Core materials such as honeycomb and thermoformable foam can be added between high-strength skins to create a sandwich structure, increasing local wall stiffness while keeping weight low. Pure laminate tubes offer thin walls with the mechanical, thermal, and electrical properties of the fiber, while sandwich core walls provide enhanced stiffness. Note: Not all material combinations may be suitable for every application; consult engineering for guidance.

What are some typical applications for large diameter carbon fiber tubes?

Large diameter carbon fiber tubes are used in a variety of applications, including telescopes (for low thermal expansion and reliability), radomes (using solid or foam-filled fiberglass construction), high-quality drums (optimized for resonance and acoustic damping), and pressure vessels (requiring thick walls for high hoop stress resistance). Note: Suitability for each application depends on specific engineering requirements; not all tube types are appropriate for every use case.

Features & Capabilities

What performance advantages do Element 6 Composites' tubes offer?

Element 6 Composites' tubes provide superior strength-to-weight ratios, high stiffness, and durability. They are engineered to withstand harsh environments, high G-forces, and extreme temperatures. Advanced finite element analysis (FEA) is used to optimize designs for demanding applications. Note: Performance may vary based on material selection and application; consult with engineering for detailed performance data. Learn more about analysis services.

Can Element 6 Composites provide custom engineering and design for my tube application?

Yes, Element 6 Composites offers custom engineering and design services for carbon fiber tubes, including collaborative design, FEA-driven optimization, and prototyping. Customers can submit drawings or requirements for a free design review. Note: The scope of customization may be limited by manufacturing capabilities or material constraints. Learn more about design services.

What quality certifications does Element 6 Composites hold?

Element 6 Composites is ISO 9001:2015 certified, ensuring adherence to rigorous quality management standards for consistent, high-quality products and processes. No other security certifications (such as SOC2) are currently listed. View certification. Note: For additional compliance requirements, contact the team directly.

Use Cases & Benefits

Who can benefit from custom carbon fiber large tubes?

Engineers, product designers, and R&D specialists in industries such as aerospace, defense, medical devices, robotics, industrial equipment, and musical instruments can benefit from custom carbon fiber tubes. These tubes are ideal for applications requiring lightweight, high-strength, and durable components. Note: Not all industries or applications may be suitable; consult with Element 6 Composites for fit.

What business impact can customers expect from using Element 6 Composites' tubes?

Customers can expect cost savings through rapid prototyping and durable materials, performance optimization via advanced engineering, and market differentiation with innovative, lightweight designs. ISO 9001:2015 certification ensures quality and reliability. Note: Actual business impact depends on project scope and application; results may vary. Explore prototyping services.

Can you share examples of successful projects using custom carbon fiber tubes?

Element 6 Composites has developed composite chassis for wall-climbing robots (used in nuclear, aerospace, and wind energy), carbon fiber control vanes for UAVs, and lightweight gondolas for unmanned airships. These projects demonstrate improved performance, weight savings, and durability. Note: Not all case studies are specific to large tubes; contact Element 6 Composites for details on similar projects. See case studies.

Technical Requirements & Support

What information is needed to request a quote for a custom carbon fiber tube?

To provide an accurate quote, Element 6 Composites requires details such as part geometry, material selection, laminate schedule, tolerances, quantity, tooling requirements, finishing, secondary operations, and timeline. The more information provided, the more precise the quote. Note: Quotes are not provided without sufficient project details. Contact Element 6 Composites.

How long does it take to design and manufacture a custom carbon fiber tube?

The timeline depends on project complexity. A design review typically takes a few weeks, while a full design-prototype-production program can take several months. Rapid prototyping services are available to reduce development time. Note: Actual timelines may vary based on project scope and requirements. Contact for a timeline estimate.

What technical resources are available to help with carbon fiber tube design?

Element 6 Composites provides resources such as 'The Ultimate Guide to Carbon Fiber Design and Application', educational articles on carbon fiber fundamentals, and detailed information on composite materials and computational analysis. These resources support customers from concept through manufacturing. Access the guide. Note: Some resources may not address all advanced or niche technical questions; contact engineering for specialized support.

Pricing & Ordering

How is pricing determined for custom carbon fiber tubes?

Pricing is based on factors including part geometry, material selection, laminate schedule, tolerances, quantity, tooling requirements, finishing, secondary operations, and project timeline. Element 6 Composites works collaboratively with customers to refine project scope and provide accurate quotes. Note: No standard pricing is available; each project is quoted individually based on requirements.

How can I start a project or request a consultation?

You can initiate a project by contacting Element 6 Composites via phone at 315-252-2559 or through the online contact form. Customers can upload drawings or requirements for a free, no-obligation design review. Note: Response times may vary based on inquiry volume and project complexity. Request a consultation.

Custom Carbon Fiber Large Tubes

Home/Applications/Other Applications

Custom Carbon Fiber Large Tubes

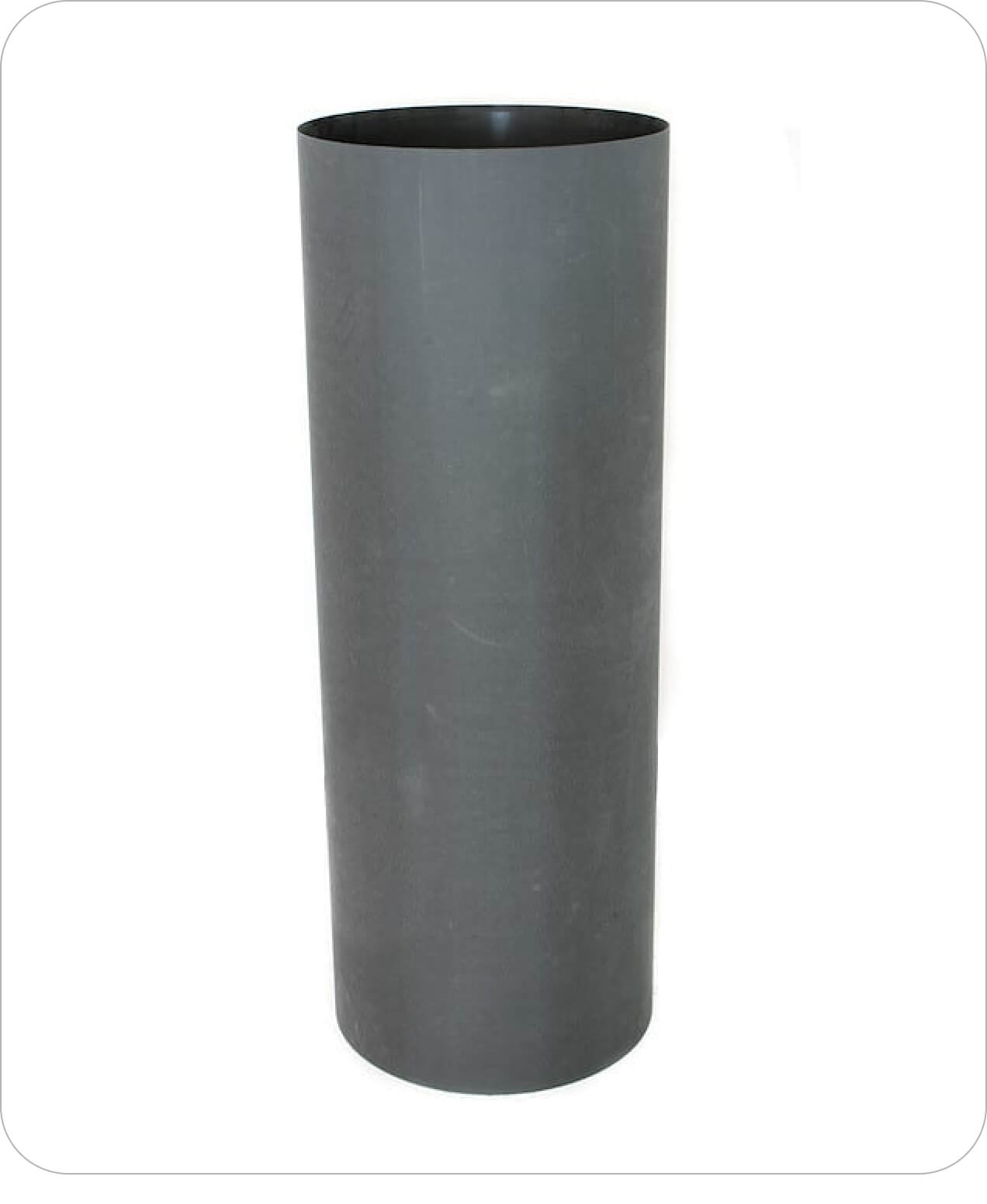

For several years, Element 6 Composites has supplied customers with custom carbon fiber tubes. Depending on the application, sizes have ranged from smaller 6 and 8 inch tubes to ones greater than 40 inches. Our current manufacturing processes allow the fabrication of custom carbon fiber tubes up to 48 inches in diameter.

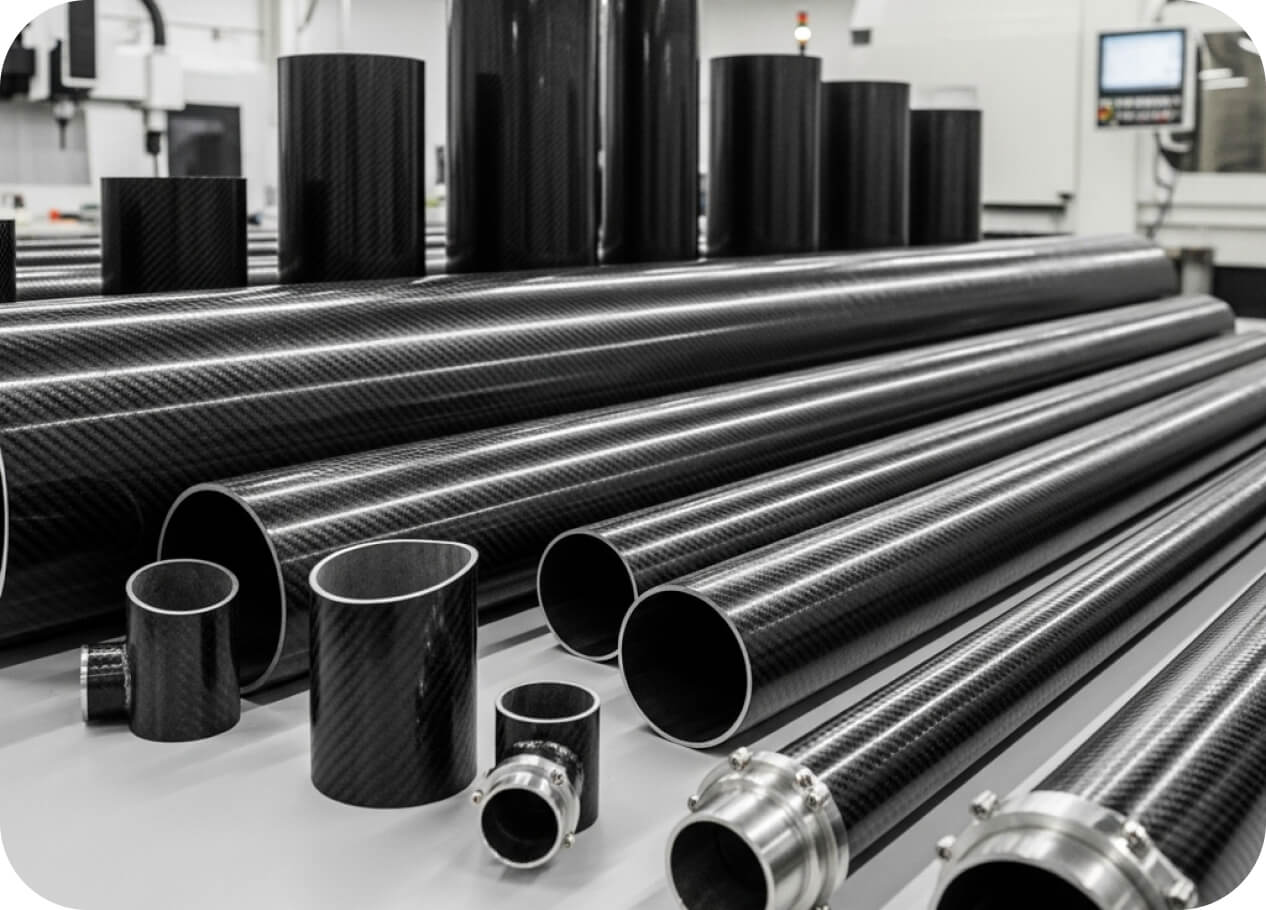

These small and large diameter carbon fiber tubes offer great versatility, both in material selection and layup schedule. Typical reinforcement materials include carbon fiber, fiberglass, and aramid fibers. In addition, core materials can be added between the high strength skins, creating a sandwich structure.

Custom Large Tubes

Many of the materials available for flat plate sandwich cores can also be used when producing sandwich core walls for custom tubes, with the most common examples being honeycomb and thermoformable form.

Each custom carbon fiber tube construction method has specific advantages: pure laminate composite tubes result in thin walls that retain the mechanical, thermal, and electrical properties of the fiber, while sandwich core walls provide a lightweight means to increase local wall stiffness.

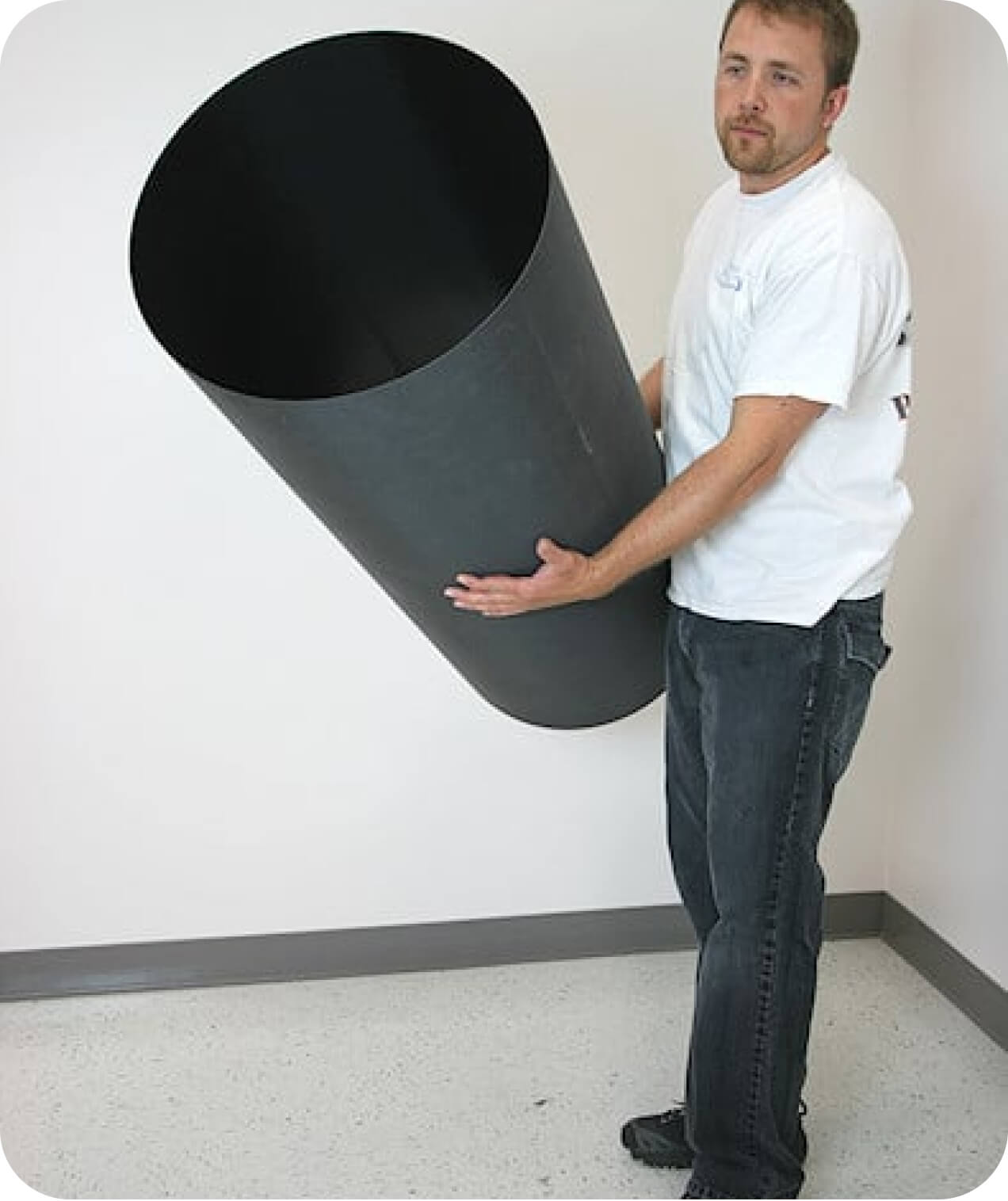

Large Diameter Carbon Fiber Tubes

Given the wide variety of choices available for small and large diameter carbon fiber tubes, the selection of materials and layup schedule often come from the project requirements. A good example is telescopes, where the low thermal expansion of solid or sandwich core carbon fiber tubes provides substantial improvements over metal tubes, thus offering the astronomer more reliability with temperature change.

Another example is the fabrication of radomes, which often use solid fiberglass or foam filled fiberglass sandwich construction. A third example is in the creation of high quality drums, where the material and layup direction can be optimized for both resonances and acoustic damping. One final example is for pressure vessels, which require thicker walls with adequate resistance to the high hoop stresses present in these applications.

Discuss Your Needs

Regardless of the application, the engineers at Element 6 Composites would be more than happy to discuss your specific application and how we may be able to help. We look forward to helping you develop a custom carbon fiber tube for your upcoming project’s needs.
